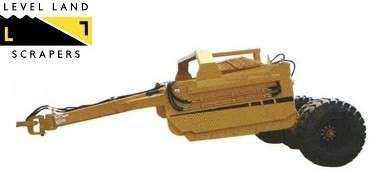

Ejector Scraper
The finishing ejector scraper is designed for use with GPS or Laser. The tandem helps eliminate bounce during operation. The "E" series are the largest finishing scrapers produced. All feature our scissor system. The 20.5 X 25 tire frame provides better flotation and clearance while leveling.
Technical Sheet
Check capacities, dimensions and HP requirements for each model.
| Model | Loading Capacity | Cutting Width | Operation Width | Weight | Tires | HP Required |
|---|---|---|---|---|---|---|
| 12E | 9.1 m³ (12 yd³) | 3.70 m (144”) | 3.7 m (150”) | 7,800 kg (17,200 lbs) | (4) 21.5 X 16.1 | 180—300 hp |
| 14E | 10.7 m³ (14 yd³) | 4.20 m (168”) | 4.6 m (174”) | 8,518 kg (18,780 lb) | (4) 21.5 X 16.1 | 200—400 hp |
| 16E | 12.2 m³ (16 yd³) | 4.80 m (192”) | 5 m (198”) | 9,026 kg (19,900 lb) | (4) 21.5 X 16.1 | 300—500 hp |
